| Categories | Round TFT LCD Display |
|---|---|
| Brand Name: | ESEN |
| Model Number: | TS050YMM-J40 |
| Certification: | ISO9001/ISO14001 |
| Place of Origin: | Shenzhen China |
| MOQ: | No MOQ |
| Price: | can be negotiated |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 300K/mth |
| Delivery Time: | 6~14 working days |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| LCD size: | 5.0 inch |
| LCD IC: | HX8399C |
| Operating Temperature: | -20℃~ +60℃ |
| Storage Temperature: | -30℃~ +70℃ |
| Active Area: | 127.008 (H) ×127.008 (V) |
| Number of Pixels: | 1080(H) RGB × 1080(V) |
| Pixel Pitch: | 0.1176 (H) ×0.1176 (V) |
| Pixel Arrangement: | 1pixel 2domain |
| Display Colors: | 16.7 M |
| Color Gamut: | 65%(Min.) 70%(typ.) |
| Display Mode: | Normally Black, Transmissive mode |

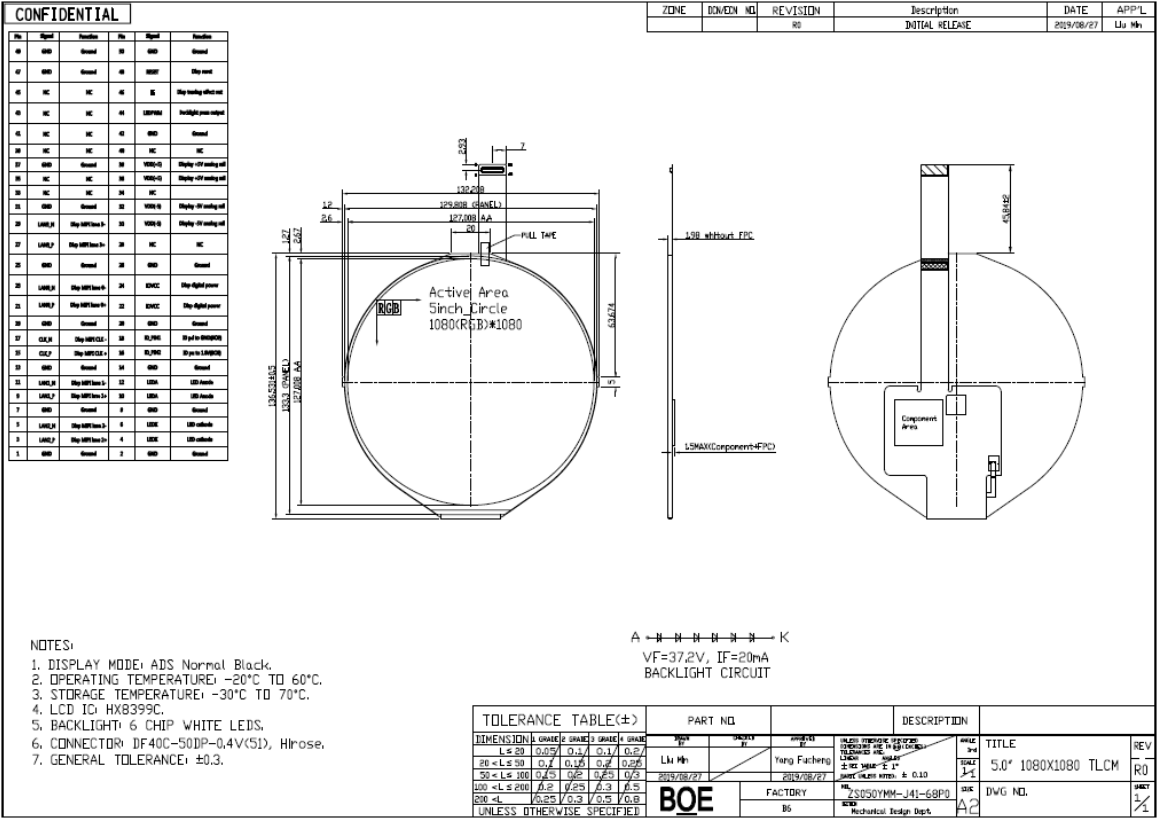

| Dimensional Outline: | 136.531x132.208x1.98mm |
| Viewing Direction (Human Eye): | U/D/L/R free viewing direction |
| Custom Service: | FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board |
| Company Info. |
| ESEN HK LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
5-inch FHD 1080P 1080x1080 TFT LCD module with high brightness 400cd
Full HD image quality
Professional school color restoration authenticity
The 5-inch physical resolution 1080 * 1080 LCD , and the display
screen is more delicate and clearafter professional color
correction
IPS Ful View| 400cd/m* brightness
ABSOLUTE MAXIMUM RATINGS

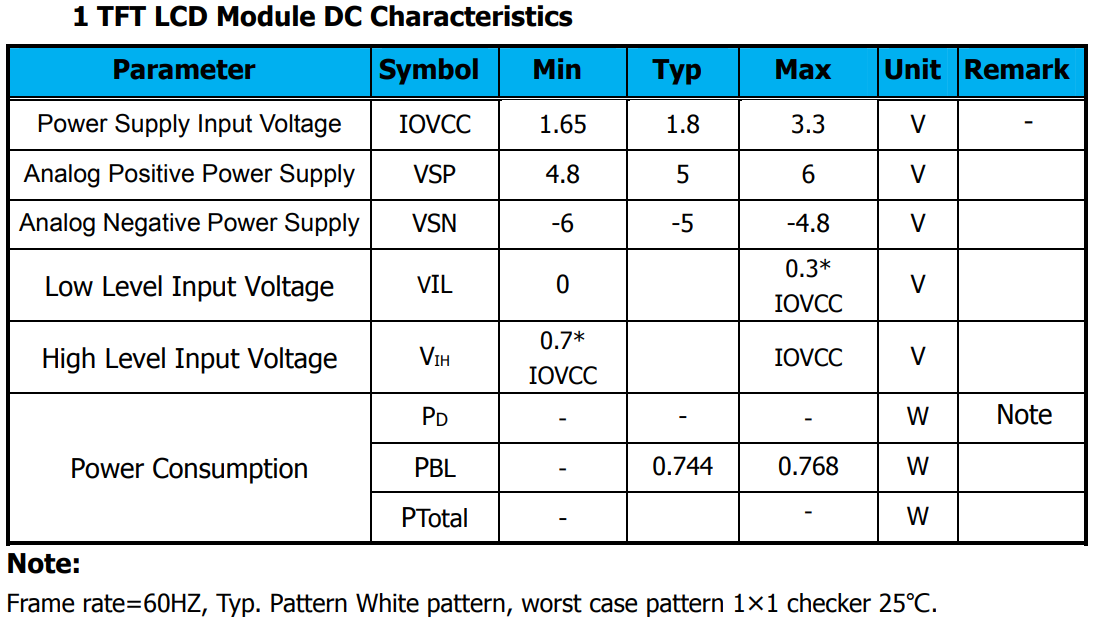

ELECTRICAL SPECIFICATIONS
FAQ
Q1: Do you accept customization displays and touch screens?
A: Sure, you can customization the FPC,Backlight and the touch
screen.
Q2: What type of interface is your display screen?
A: Small sized of displays generally support
SPI,MCU,RGB,MIPI.Medium sized displays generally support
LVDS,MIPI,EDP.Different specifications use different interfaces.
Q3: Do you used capacitive touch screen or resistive touch screen.
A: We have capacitive touch screen and resistive touch screen .
Q4: What is your sample policy?
A: If there is stock,you can sample at any time,if there is no
stock,it will take some time,and then wait for the materials to
come back to sample. But the customer needs to pay the sample fee
and express fee.
Q5: How long is your lead time for mass production?
A: It takes about 20 - 45 working days for mass
production,depending on the model and order quantity.
Q6: How to ensure long-term stable delivery?
A: First,we will recommend products that can be delivered for a
long time to customers,and second,we will have a large number of
stocks in advance for a long time.
Q7: What is your mode of payment for mass production?
A: Generally,after receiving 50%-100% deposit from customers,they
begin to prepare materials. Delivery is about 5 working days after
receipt of the final payment.
Q8: Will you inspect the goods before delivery?
A: Yes, we’ll ship the goods after 100% inspection.
Q9: How long is your warranty period?
A: We guarantee the quality for one year.
|
