| Categories | Bar Type TFT LCD |
|---|---|
| Brand Name: | ESEN |
| Model Number: | TX070-30RB-A2 |
| Certification: | ISO9001/ISO14001 |
| Place of Origin: | Shenzhen China |
| MOQ: | No MOQ |
| Price: | can be negotiated |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 300K/mth |
| Delivery Time: | 7~14 working days |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Size: | 7.0 inch |
| Resolution: | 280(horizontal)*1424(Vertical) |
| Interface: | MIPI |
| Connect type: | Connector |
| Color Depth: | 16.7M |
| Technology type: | a-Si |
| Pixel pitch (mm): | 0.12x0.12 0.12x0.12 |
| Pixel Configuration: | R.G.B. Vertical Stripe |
| Display Mode: | Normally Black |
| Viewing Direction: | ALL |
| Gray Scale Inversion Direction: | ALL |
| LCM (W x H x D) (mm): | 38.20*181.47*3.5 |
| Active Area(mm): | 33.6 x 170.88 |
| With /Without TSP: | Without TSP |
| Weight (g): | TBD |
| LED Numbers: | 8 LED |
| Customization: | FPC(Shape,Pin Definition,Connector,EMI Film) Backlight(Dimension,Using Life,LED Color,Luminance) Touch Panel(Shape,Dimension,FPC,Touch Points) |
| Company Info. |
| ESEN HK LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
7.0 Inch TFT LCD Display 280x1424 IPS Panel MIPI display module with CTP MIPI/RGB interface Bar Type TFT LCD TFT
ESEN (Hong Kong) Optoelectronics Co., Ltd. is a professional manufacturer of LCD displays. We can provide TFT LCM with RTP or CTP, TFT touch screens, monochrome graphic displays, TFT LCD glass, OLED display panels, embedded displays, etc. This enables us to consistently offer high-quality products at competitive prices.
Main Products
Monochrome LCDs, including TN, HTN, STN, FSTN, VA LCD
Character and graphic COG, COB, TAB liquid crystal modules
TFT LCM: Bonded driver IC, FPC, assembled backlight and touch TP -
cover touch, cover lens, sensor processing, backlight, FPC, PCBA
(converter board, Android board), TFT LCM + CTP optical bonding,
brand original TFT LCM and color OLED displays (supporting P-cap)

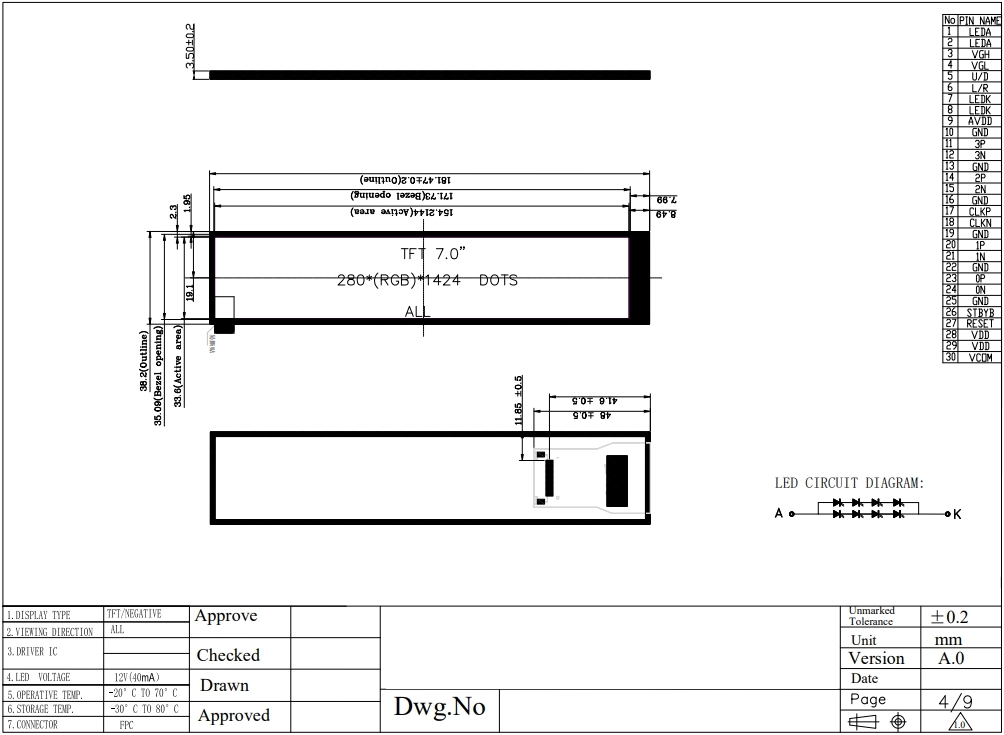

Mechanical Drawing

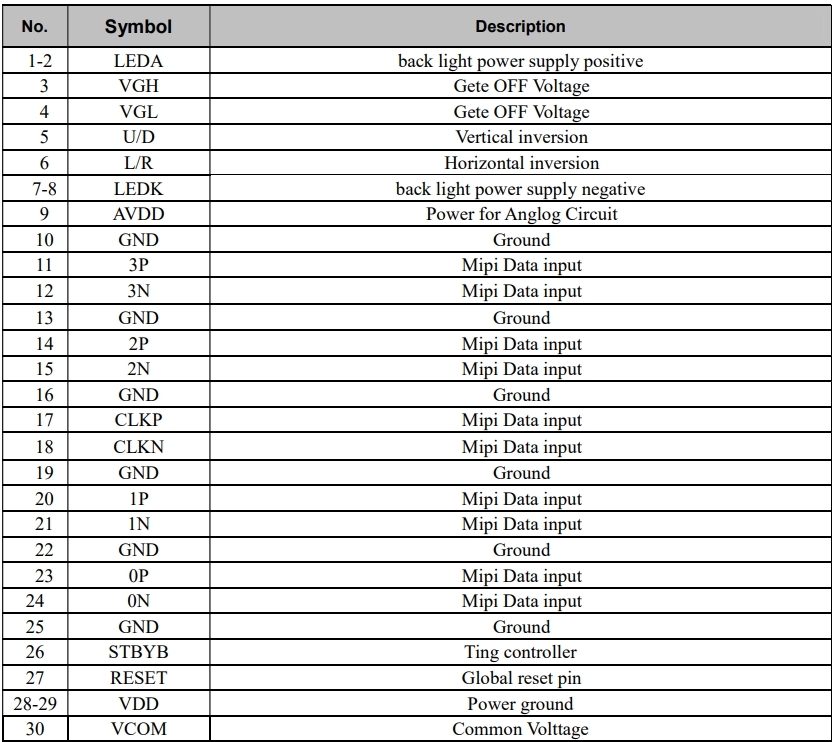

Input/Output Terminals
1. Q: What is your company's experience and reputation in the industry?
A: Our company has been in business for 15 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.
2. Q: Are there any certifications or standards that the product meets?
A: Yes, our product meets several industry certifications and standards, ISO9001 Certificate; RoHS Environmental Certification;
|
