White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface

Name: White Blue 096in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface
Brand: ESEN
Price: 1 USD

White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface

Categories	OLED LCD Display
Brand Name:	ESEN
Model Number:	TX096PM2864-1
Certification:	ISO9001/ISO14001
Place of Origin:	Shenzhen China
MOQ:	1000PCS
Price:	Please make an enquiry
Payment Terms:	T/T,L/C
Supply Ability:	300K/mth
Delivery Time:	2-4 weeks
Packaging Details:	All the products are packed in right way
Display Mode:	Passive Matrix
Display Color:	Monochrome (Yellow＆Blue)
Drive Duty:	1/64 Duty
Outline Drawing:	According to the annexed outline drawing
Number of Pixels:	128 x 64
Panel Size:	26.70 x 19.26 x 1.25 (mm)
Active Area:	21.74 x 11.2(mm)
Pixel Pitch:	0.17 x 0.17(mm)
Pixel Size:	0.15 x 0.15 (mm)
Driver IC:	SSD1306
FP C Numbe:	NFP1306-133

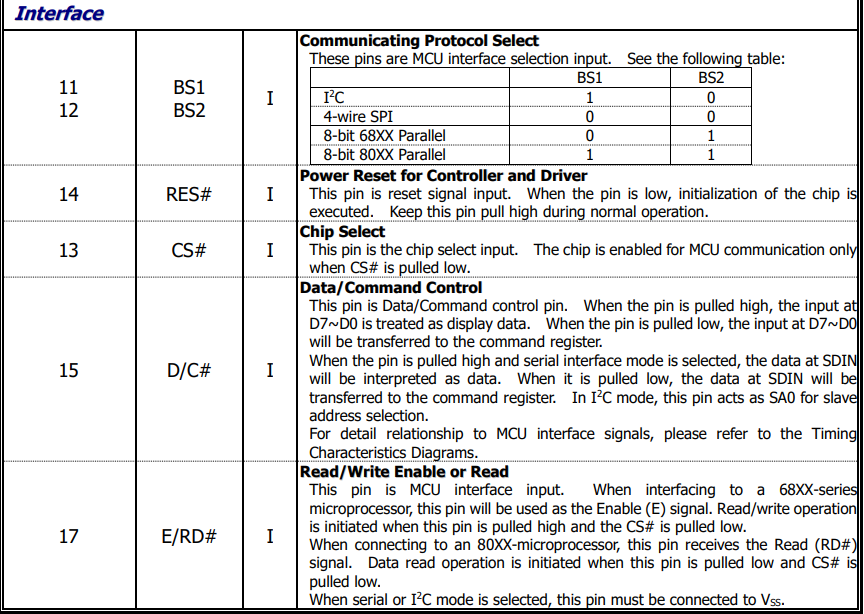

Interface:	8-bit 68XX/80XX Parallel, 4-wire SPI, I2C
Luminance:	100cd/m2
FPC Connecting Mode:	30 Pin Soldering FPC
Weight:	1.54 (g)
Datasheet:	Please contact service

Contact Now

Add to Cart

Company Info.

ESEN HK LIMITED

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface

0.96 Inch 128x64 White Blue Color Mono OLED Display 30Pin Monochrome PMOLED Screen Panel SSD1306 SPI I2C Interface

X096-2864TMBEG03AT-H30 Folding Type OEL Display Module Pixel Number: 128 x 64, Monochrome, COG Package

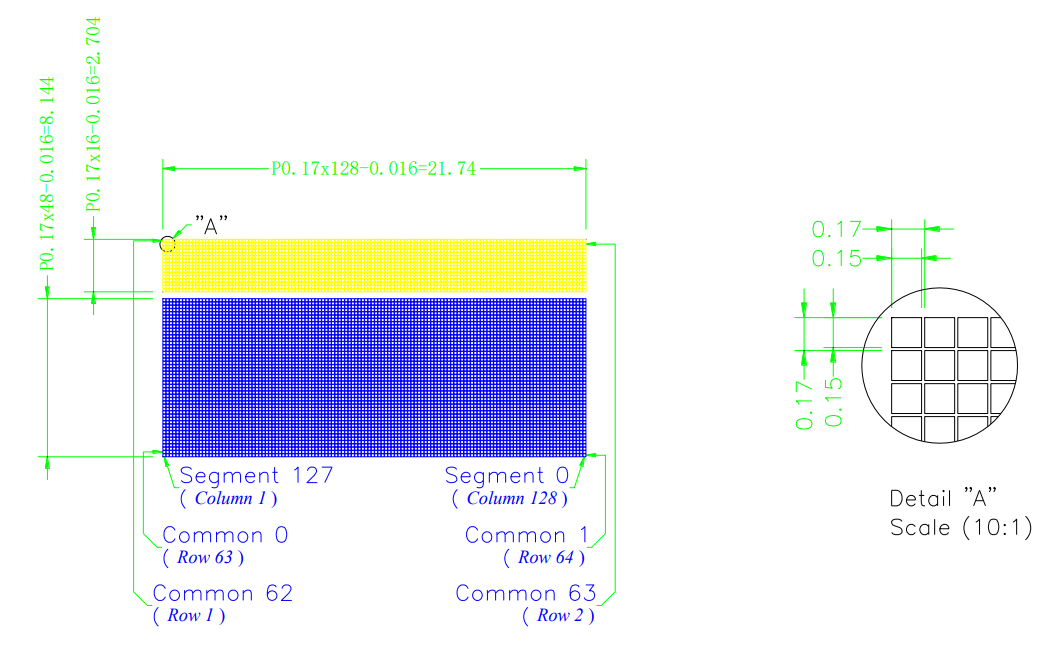

Active Area / Memory Mapping & Pixel Construction

Mechanical Drawing

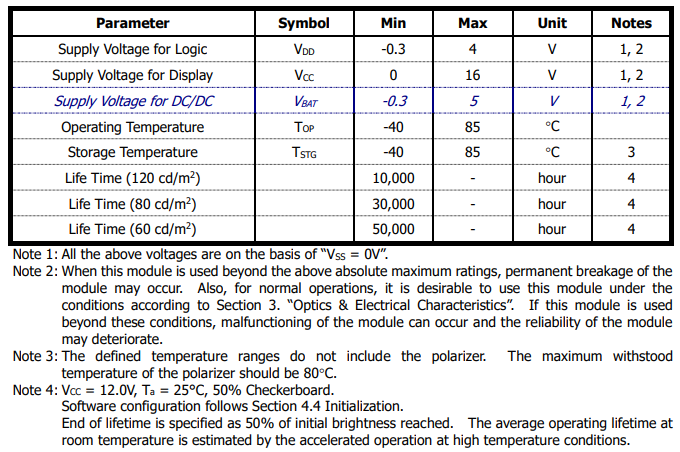

VCC Supplied Externally Absolute Maximum Ratings

Q&A

Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
