1.5'' 1.54'' OLED LCD Display 128x64 24 Pin I2C SPI Parallel Interface SSD1309

Name: 15 154 OLED LCD Display 128x64 24 Pin I2C SPI Parallel Interface SSD1309
Brand: ESEN
Price: 1 USD

1.5'' 1.54'' OLED LCD Display 128x64 24 Pin I2C SPI Parallel Interface SSD1309

Categories	OLED LCD Display
Brand Name:	ESEN
Model Number:	TX154PM2864KLBTG01-C24
Certification:	ISO9001/ISO14001
Place of Origin:	Shenzhen China
MOQ:	1000PCS
Price:	Please make an enquiry
Payment Terms:	T/T,L/C
Supply Ability:	300K/mth
Delivery Time:	2-4 weeks
Packaging Details:	All the products are packed in right way
Size:	1.54 inch
Display Mode::	Passive Matrix
Display Color:	Monochrome (White)
Drive Duty:	1/64 Duty
Outline Drawing:	According to the annexed outline drawing
Number of Pixels:	128 x 64
Panel Size:	42.04 x 27.22 x 1.4 (mm)
Active Area:	35.052 x 17.516(mm)
Pixel Pitch:	0.274x0.274(mm)
Pixel Size:	0.254 x 0.254 (mm)
Driver IC:	SSD1309
FPC Number:	NFP1309-01
Interface:	8-bit 68XX80XX Parallel, 4-Wire SPl, 12C
FPC Connecting Mode:	24 Pin Soldering FPC
Luminance:	150cd/m2
Weight:	3.28 (g)
Operating Temperature:	-40~85°C

Contact Now

Add to Cart

Company Info.

ESEN HK LIMITED

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

X154-2864KLBTG01-C24 Folding Type OEL Display Module Pixel Number: 128 x 64, Monochrome, COG Package

Active Area / Memory Mapping & Pixel Construction

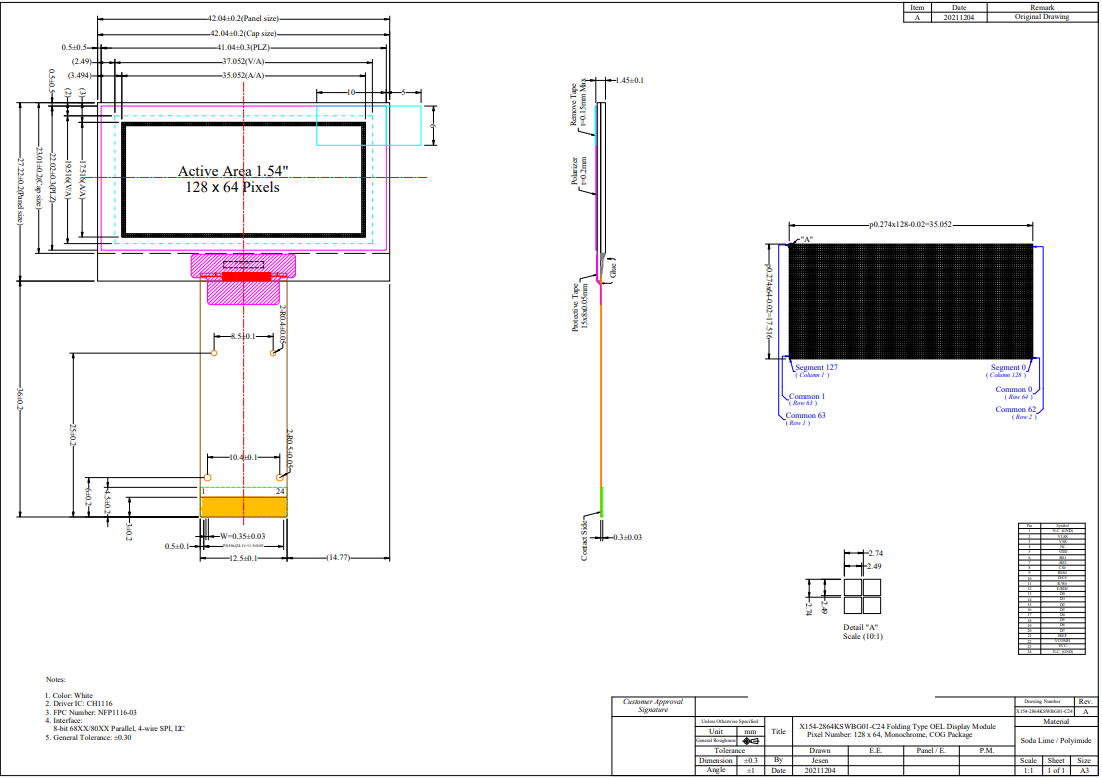

Mechanical Drawing

Pin Definition

Recommended Components:

C1, C2: 1μF / 16V, X5R

C3: 2.2μF /25V

C4: 4.7μF / 25V, X7R

C5: 0.1μF/ 25V, X7R R1, R2: 47kΩ R3: 910KΩ, R3 = (Voltage at IREF - VSS) / IREF Q1: FDN338P Q2: FDN335N Notes: VDD: 1.65V~3.3V VCC_IN: 11.5~12.5V

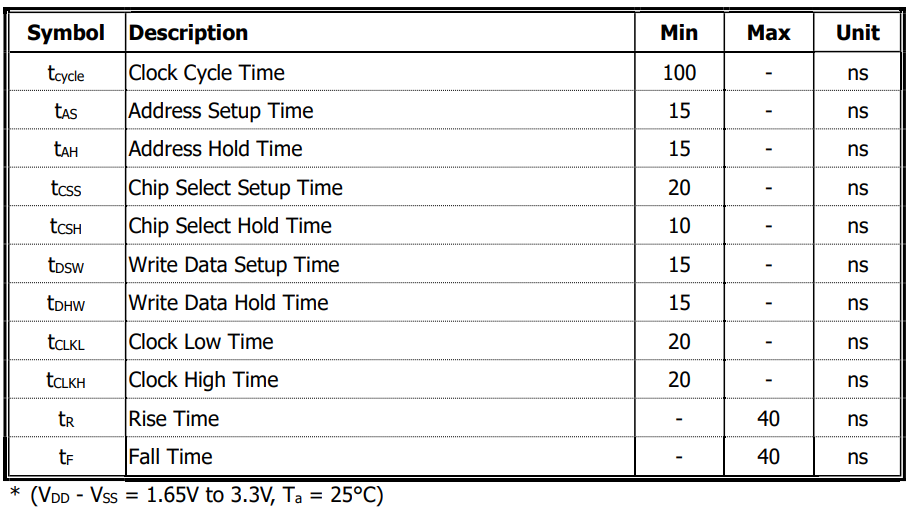

Serial Interface Timing Characteristics: (4-wire SPI)
